KF1000 System

Touring level Active Line-array Intelligent System

Elegant appearance design and powerful output capacity, matched with German high-precision DSP processor. Let the speakers have the brain. It has a variety of sound reinforcement modes to adapt to the application needs of different venues. KENFORD consistently provides you with the best sound.

FEATURES:
1. UCD Bi-amp technology packs huge performance operating with high efficiency into a lightweight solution, providing ultra-fast attack
2. A、B、C、D four factory presets and USER personal modes(near field, mid field, far field), volume of each speaker is controlled separately
3. Each speaker is active, EQ and GAIN can be adjusted via Ethernet port. Adopted to Neutrik connectors
4. Amplifier passed 100 hours full power test at 60 degrees, a customized solid aluminum panel helps the fan-less heat dissipation
5. 100% German design and Made in Germany high precision DSP chip, 64 Bits/48 kHz fast running and low noise
6. High class neodymium loudspeakers, high efficiency, light weight, small size but high SPL
7. IP45 rating, anti-dust and water-proof
8. Woofers adopted PU surround which is good at low frequency. Innovative linear horn design provides wide dispersion H90°x V16°,0°-10°multi-vertical angles adjustment
9. Premium birch plywood cabinet, water-proof treatment conforms to RoHs, anti-high temperature and anti-corrosion.

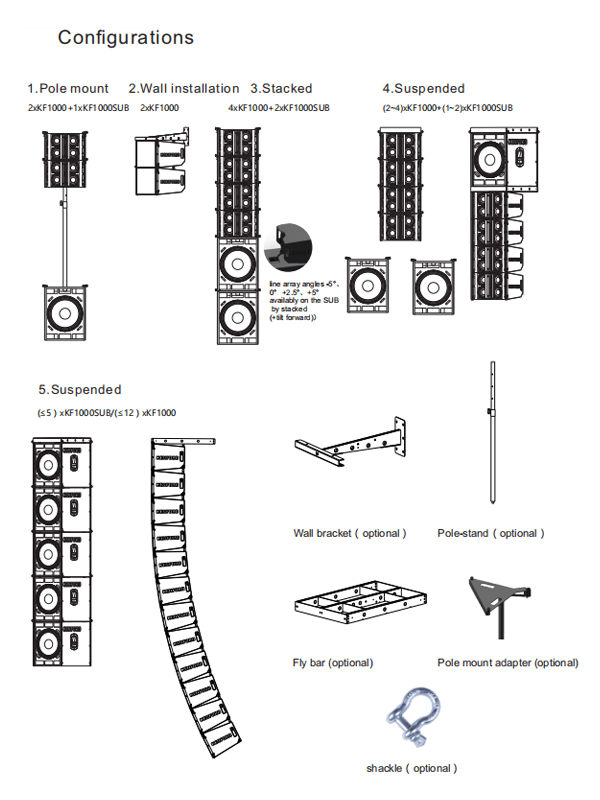

10. Multiple installation methods, Pole mount, Stacked or Suspended according to specific application

Technische Daten

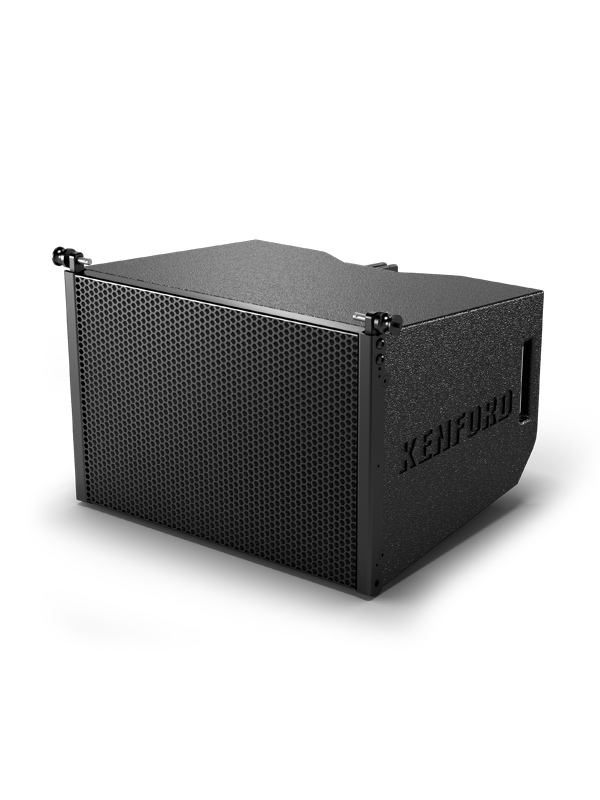

KF1000

Components: 4x5" NEO woofer + 2x1.75" NEO
Frequenzy response: 80 Hz - 20 kHz
RMS power: 600 W
Program Power: 1200 W
Dispersion (6dB): H120° x V16°
Max. SPL: 132 dB (W/1m)
Connection: XLR
Product weight: 17 kg
Gross weight: 19 kg
Product size(W*D*H): 45.0 x 36.4 x 29.5 cm
Shipping size: 52.5 x 43.8 x 37.4 cm

Output Power: 2x500W/4 ohm (EIA test standrd,100Hz 100ZH 1%THD)
S/N: >95dBA(A weighted)
Damping Factor: >500(20Hz-100Hz)
Protection: over voltage protection up to 264V AC, overload output protection , clip , soft limiter

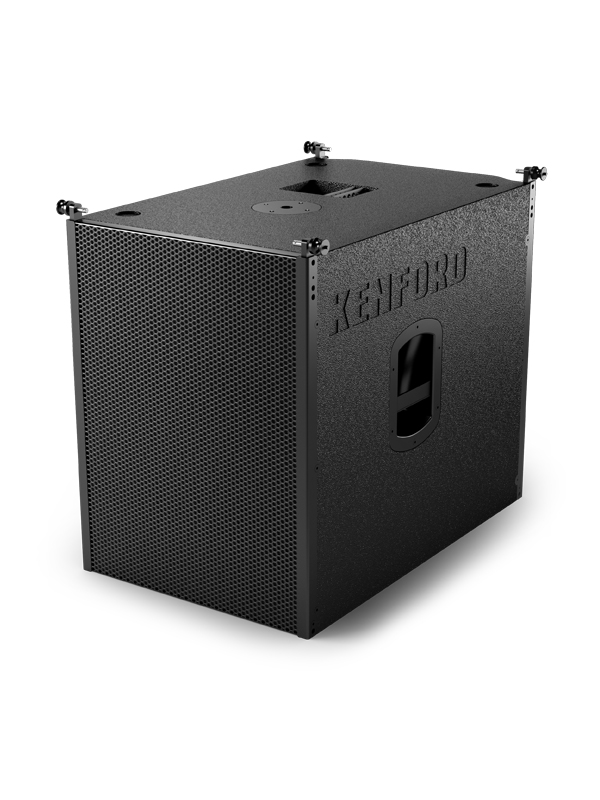

KF1000 SUB

Components: 15" NEO subwoofer
Frequenzy response: 40 Hz - 150 Hz
RMS power: 1000 W
Program Power: 2000 W
Max. SPL: 134 dB (W/1m)
Connection: XLR
Product weight: 43 kg
Gross weight: 45 kg
Product size(W*D*H): 45.0 x 58.5 x 69.8 cm
Shipping size: 52.8 x 70.5 x77.32 cm

Output Power: 1x2000W/8 ohm Bridge (EIA test standrd, 100Hz 1%THD)
S/N: >95dBA(A weighted)
Damping Factor: >500(20Hz-100Hz)
Protection: over voltage protection up to 264V AC, overload output protection , clip , soft limiter
